Beijing Oumeng Biotechnology Medical Cold Storage

Project overview:
From the cold storage design, equipment procurement to the installation, Haocool undertook Beijing Oumeng biotechnology medical cold storage project. The pharmaceutical cold storage is 2200 cubic meters. The temperature is 2-8 Celsius degrees and the temperature difference is plus or minus 1 Celsius degree. Cold storage refrigeration control system is controlled by visual centralized software. It is equipped with temperature overrun alarm, SMS query real-time temperature, alarm on improper opening of cold storage door, power failure alarm, alarm linkage control, alarm SMS notification and other cold storage design standards. Cold storage equipment mainly uses Sanyo, the Italian original Contardo air-cooled chiller, Changzhou Jingxue board, Carel controller. The entire project lasted 45 days, and has been completed by the end of 2011 and got the acceptance. The cold storage runs well and there is no failure.

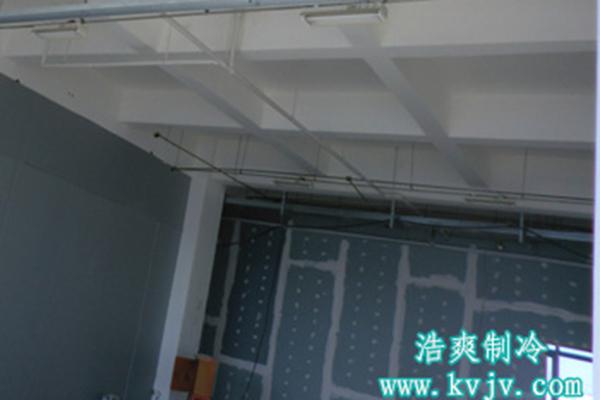

  • Installation of cold storage board
  • Installation of cold storage

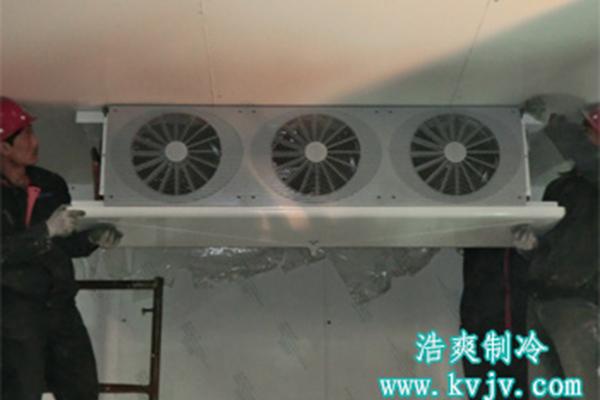

  • Installation of air-cooled chiller

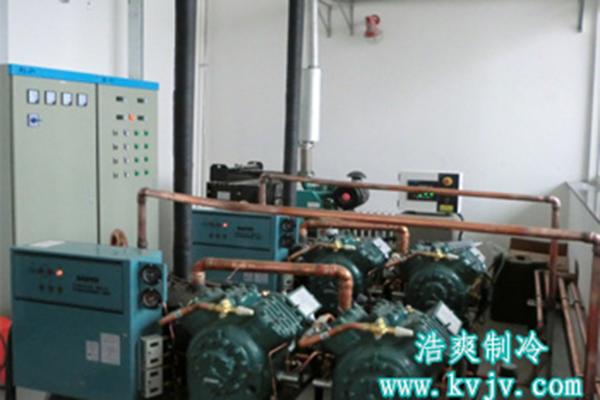

  • Completed installation of cold storage equipment

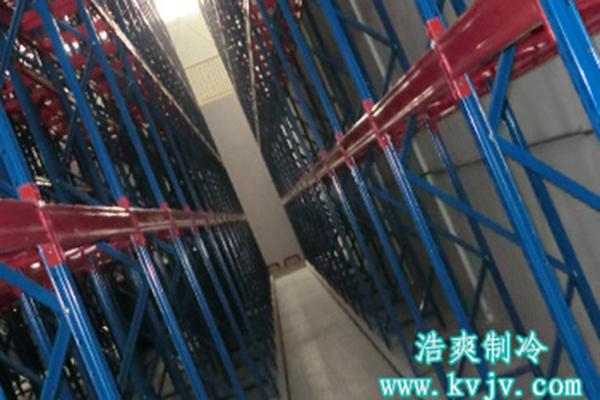

  • Completion of cold storage project

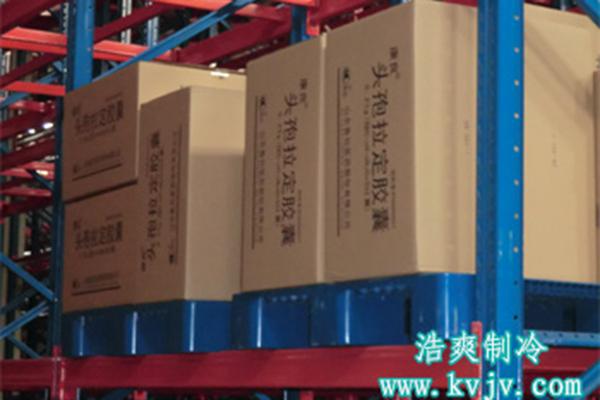

  • Medical cold storage in use
