Howcool designed a hospital cold storage room for Peking University International Hospital, with 32 rooms.
Since the stored items include plasma and drugs, which have specific temperature requirements, the security and stability of refrigeration equipment is very important. Therefore, Howcool designed the spare unit and PLC controlling system for optimal reliability. It also has the function of automatic protection when the power is off and automatically alarms when temperature is over the rated value.
| Cold storage warehouse capacity | 3000m3 | Storage capacity | ---- |
| Stored items | Plasma, drug, medical apparatus and instruments | Cargo handling method | Manual |

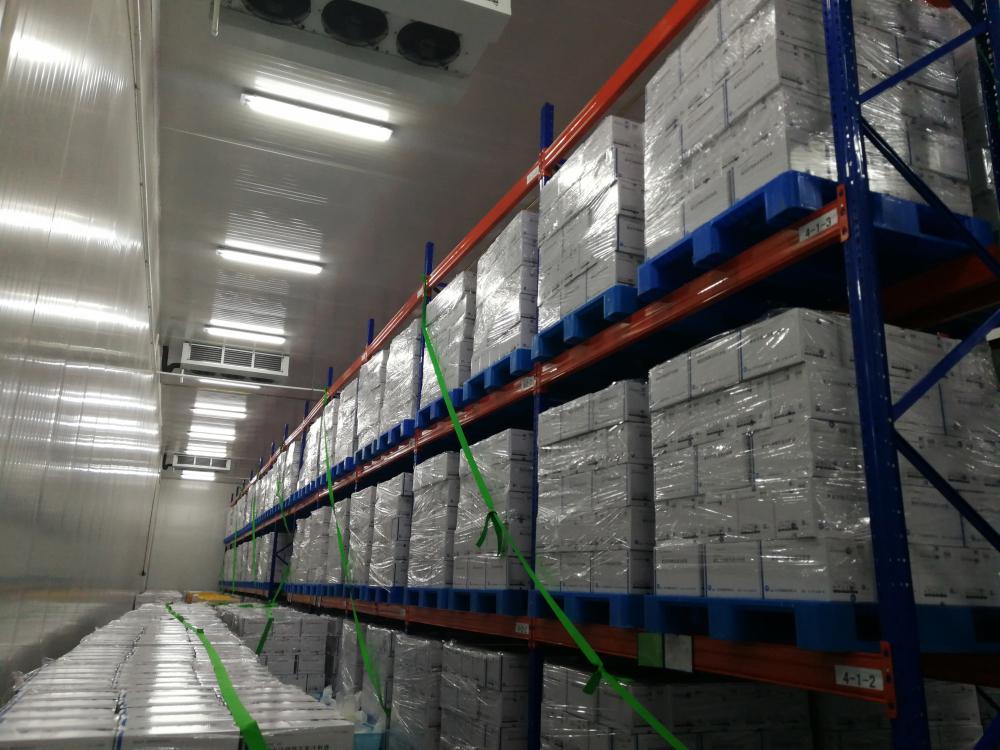

| Height of cold storage warehouse | 3m | Cargo storage method | Cargo shelf |
| Construction time | March 2014 | Construction period | 120 days |
| Cold storage warehouse classification | Customer use | Building structure | Concrete |
| Design temperature | 2-8℃, -18~-25℃,-30~-35℃ |

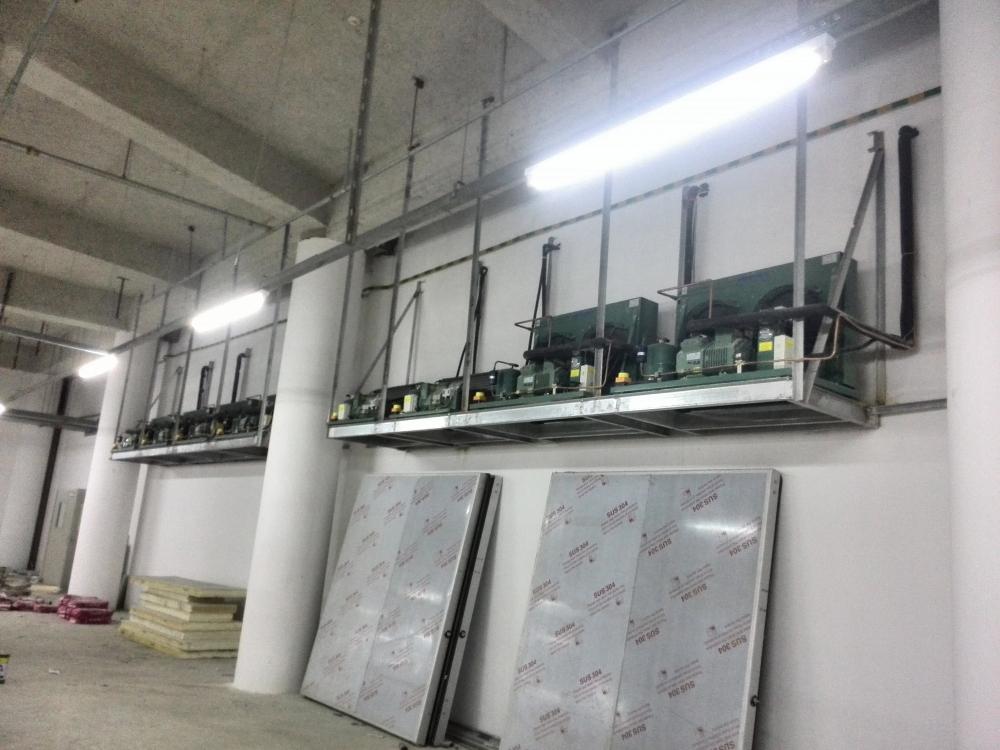

| Refrigerating unit | Bitzer compressor |
| Voltage | 380V-415V/3 phase /50-60hz |
| Condensation method | Forced air cooling |

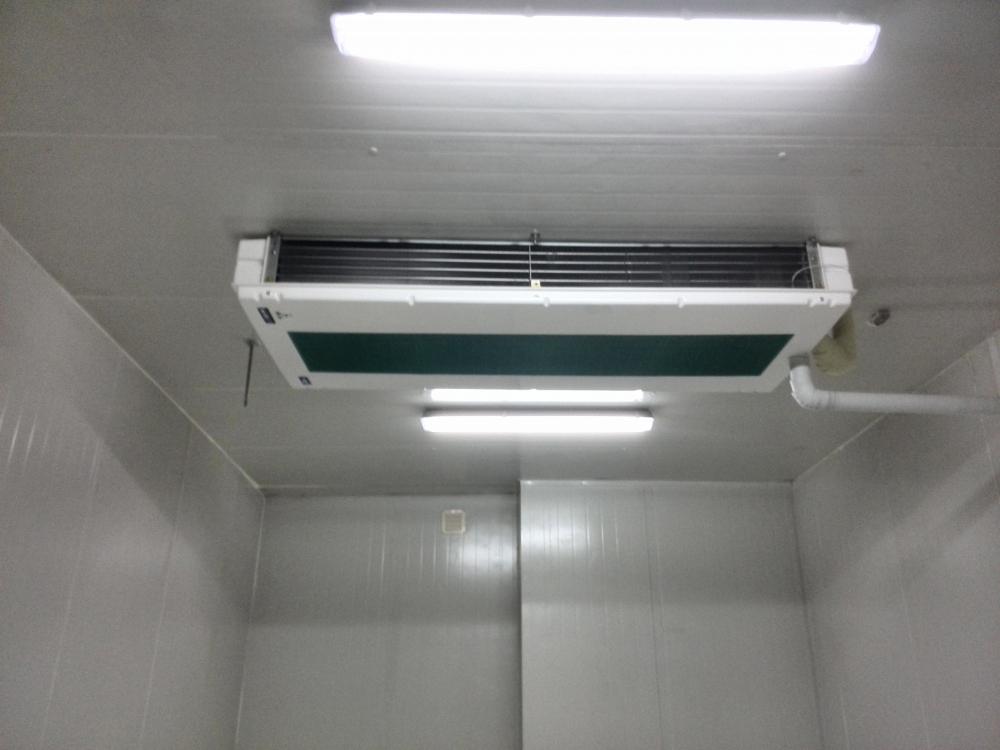

| Evaporation method | Draught fan |
| Defrosting method | Electric heating defrosting |
| Liquid supply method | Direct expansion liquid feed |
| Freezing medium | Environmentally friendly freezing medium |
| Electronic control method | PLC long-distance intelligent control, real-time inspect: cold storage warehouse temperature, draught fan operating state, defrosting state |
| Cold storage warehouse thermal insulation | 100/150 thickness double-sided colored steel polyurethane insulation board |

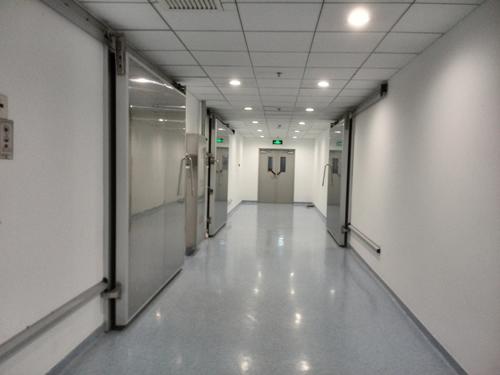

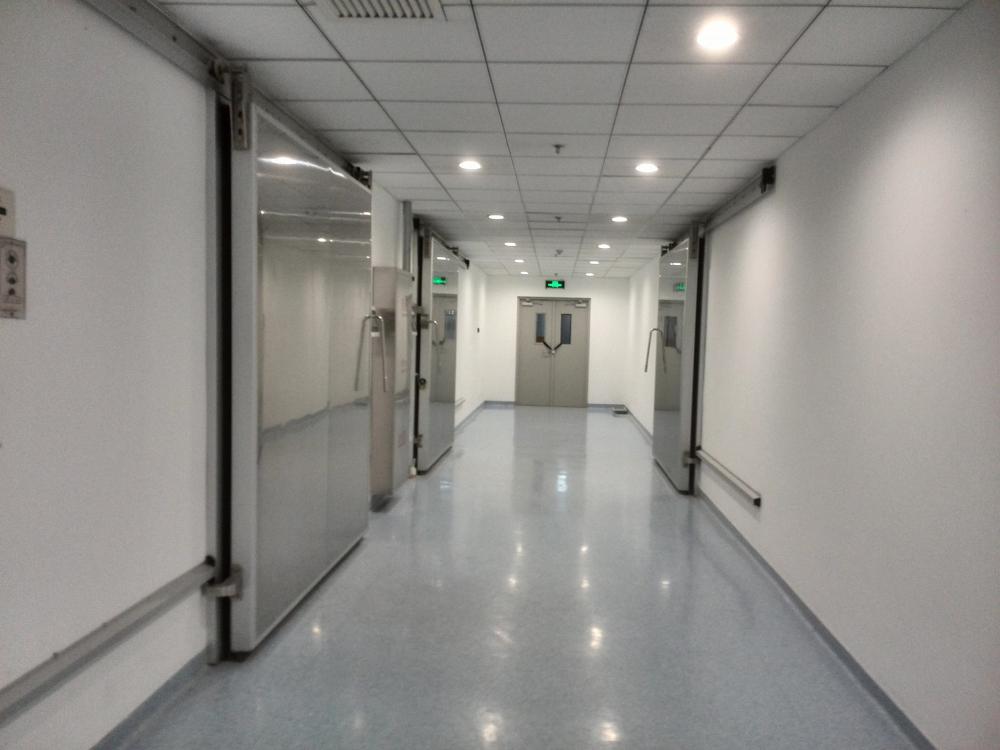

| Cold storage warehouse door | Double-sided stainless steel hinge door/sliding door |
