Client: Ningbo Intenet Logistics Co.,Ltd.
Projectschedule: September 2013 - November 2013

Project profile
Ningbo Intenet Logistics Co., Ltd. needed a pharmaceutical cold storage warehouse. Since the different kinds of pharmaceutical products required different storage conditions, Howcool designed a pharmaceutical cold storage warehouse with 8 rooms, including 2 buffer rooms, 4 high-temperature cold storage warehouses, and 2 low-temperature cold storage warehouses.

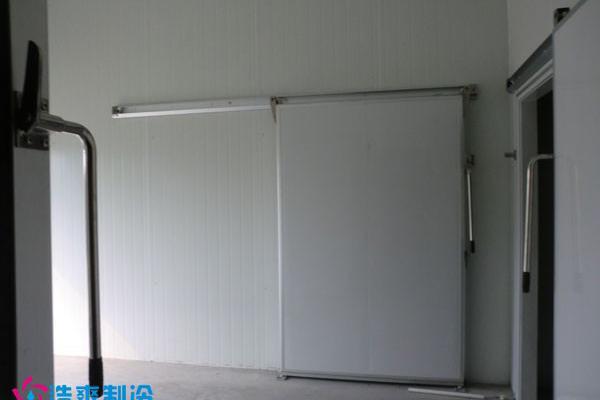

The pharmaceutical cold storage warehouse door adopts one electric sliding door and one electric vertical lift door.

The devices are operated via remote control and feature real time data monitoring and history records saving. In order to improve security, Howcool designed an automatic temperature and humidity alarm, and users will receive the alarm information through a message.

The whole pharmaceutical cold storage warehouse project passed the acceptance inspection in November 2013, and was highly praised by the client and the device works smoothly now.

Product detail
Pharmaceutical cold storage warehouse: Double-sided polyurethane colored steel board

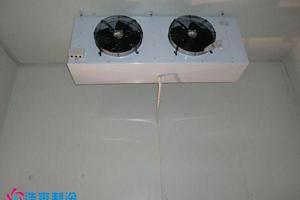

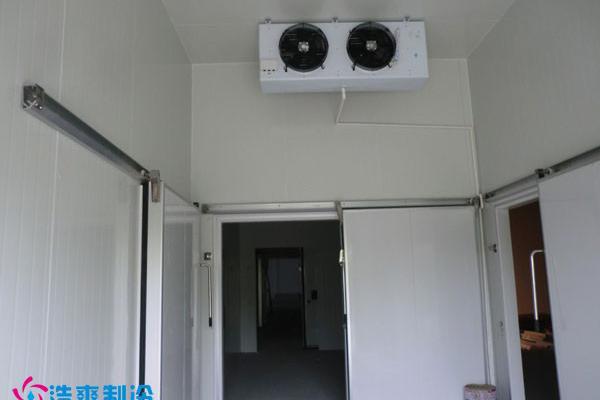

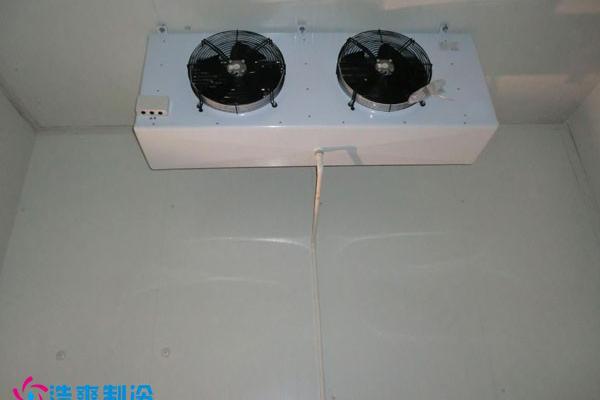

Refrigeration equipment: Emerson unit,Copeland unit,D type series of air cooling air cooler
Temperature of buffer room: 12-15℃
Temperature of high-temperature cold storage warehouses: 2-8℃
Temperature of low-temperature cold storage warehouses: -15℃
