Cold Room Panels

Insulated Panels For Cold Storage

  • Home
  • Products
  • Cold Room Panels

Our cold room panels are crafted using a blend of polyisocyanate and polyether or polyester polyol, resulting in a high-performance product that's perfect for cold storage. The panels are known for their superior heat conductivity and temperature preservation, as well as impressive compressive and tensile strength, preventing deformation and ensuring long-lasting performance.

Our cold room panels are available in three thicknesses: 100-120mm for cold storage insulation, 150-200mm for freezer insulation, and 200-250mm for quick-freezer insulation. No matter which thickness you choose, you'll enjoy a reliable and efficient product that's ideal for maintaining the temperature of your cold storage.

Request a Quote

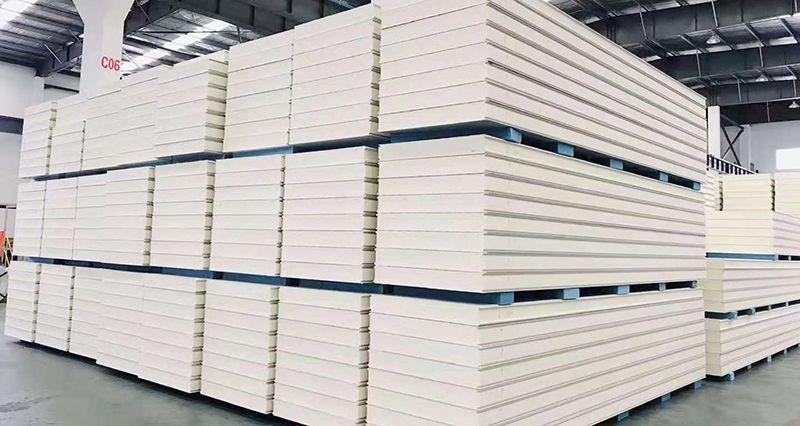

Cold Room Panels
  • Cold Room Panels
  • Cold Room Panels
  • Cold Room Panels
Features

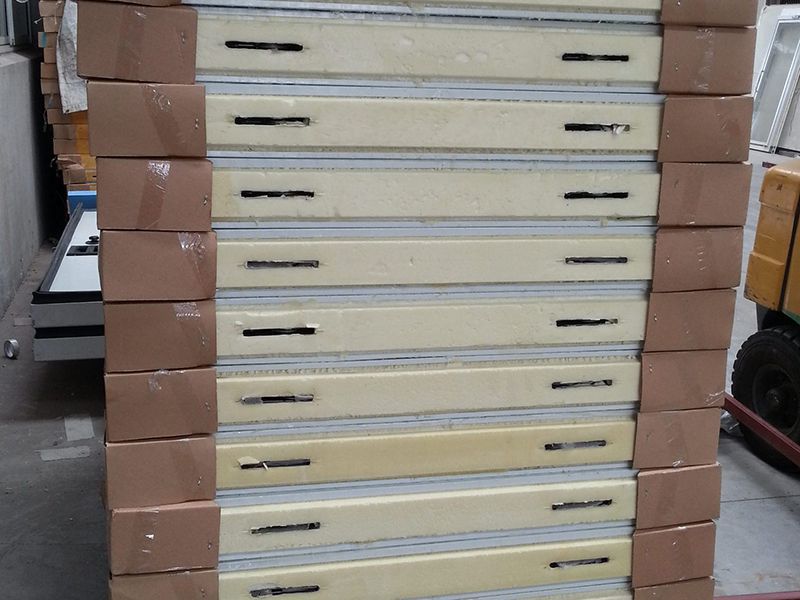

  • Cam-Lock Panel Our Cam-Lock panels are designed with convenience in mind. With an eccentric hook embedded in the mould around the sandwich panel during production, these panels are easy to assemble and perfect for small or medium-sized cold storage facilities.

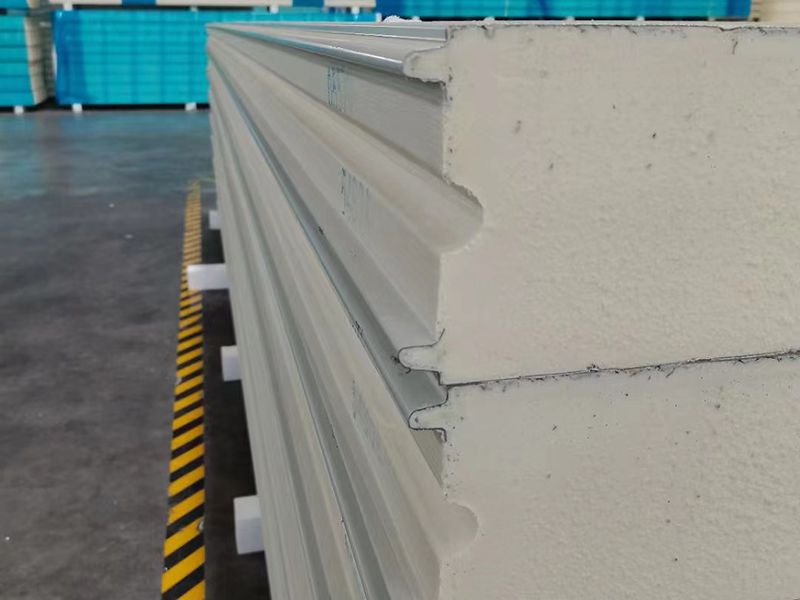

  • Plug-in Panels We're proud to use the latest technology to produce our Plug-in panels. Our continuous production line creates a foaming material in a high-temperature environment, resulting in uniform foam with no stoma and better insulation performance. Trust our Plug-in panels to provide reliable and long-lasting cold storage solutions.
General Information
Steel Thickness 0.376~0.8mm
Panel thickness 50/75/100/125/150 /180/200mm
Effective width (1) 960/mm —for roof
(2) 925/960/1125mm—for wall or ceiling
Length According to customer’s request, less than 11.8m
Materials A polyurethane (PU) core and color-coated steel tiles on both sides

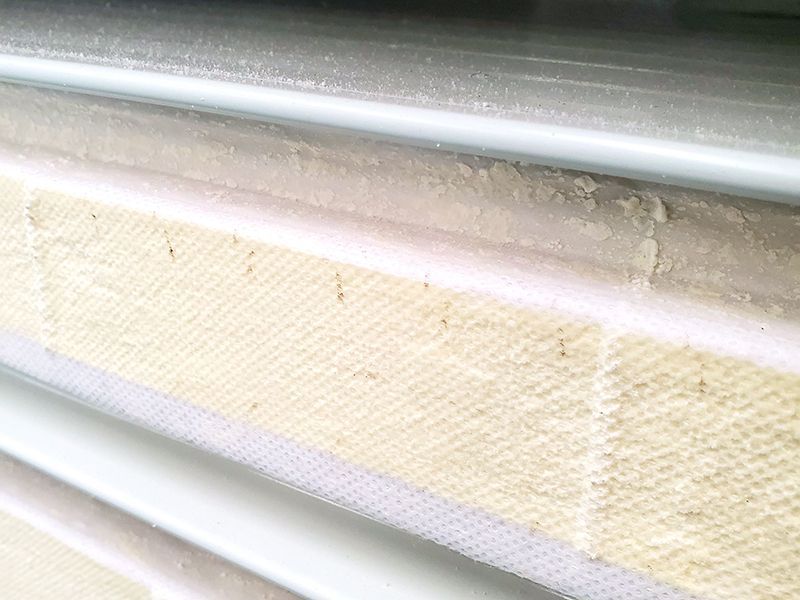

Structure The panel is composed of three layers:
(1) The top layer is made of durable steel sheet material.
(2) The inner layer is a high-quality PU sandwich that provides excellent insulation.
(3) The bottom layer is also made of steel sheet material for added strength and stability.
Density 38-45(kg/m³), etc.
Color blue, white grey or other color
Parts (1) Steel lines that make it easy to connect them together seamlessly
(2) A film covering to protect the steel panels from damage during transport and installation.
Lifetime 15-20 years
Features Light in weight, heat insulation, fireproof and waterproof, environmentally-friendly
Usage Suitable for large-sized factory buildings, storage facilities, exhibition halls, gymnasiums, and other structures for roofing and wall cladding

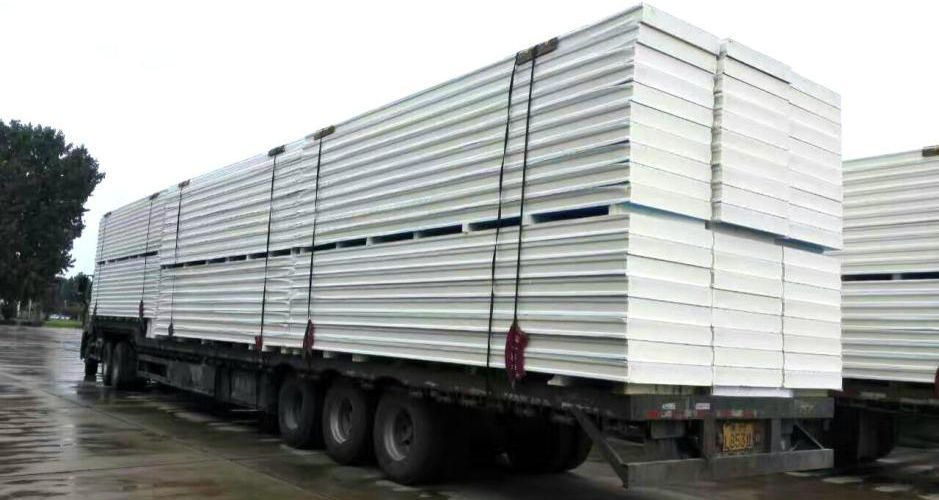

Packing Packed in shipping containers or customized to suit your specific requirements

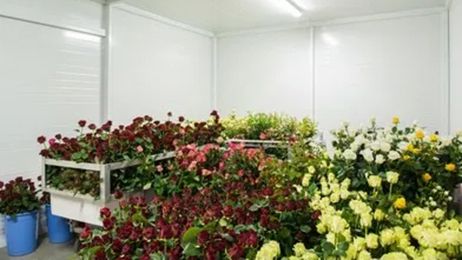

Applications
  • Applications
  • Applications
  • Applications
  • Applications
  • Logistics Cold Storage Warehouse
  • Pharmaceutical Cold Storage Warehouse
  • Medical Cold Storage warehouse for Hospital
  • Hospital Cold Storage Room
  • Food Logistics Cold Storage Warehouse
  • Refrigerated Warehouse for Meat
  • Cold Storage Warehouse, 5000T
  • Logistics Central Refrigerated Room
  • Beverage Cold Storage Warehousing
  • Energy Saving Double Deck Cold Storage Construction
  • Natural Flower Cold Storage Warehouse
  • Pitaya Cold Storage Warehouse

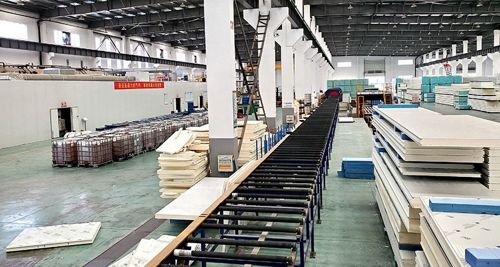

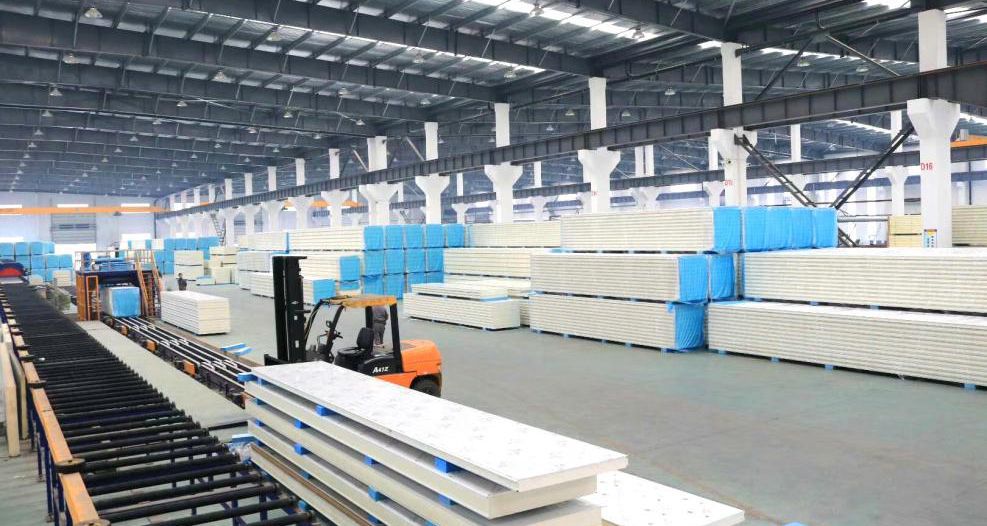

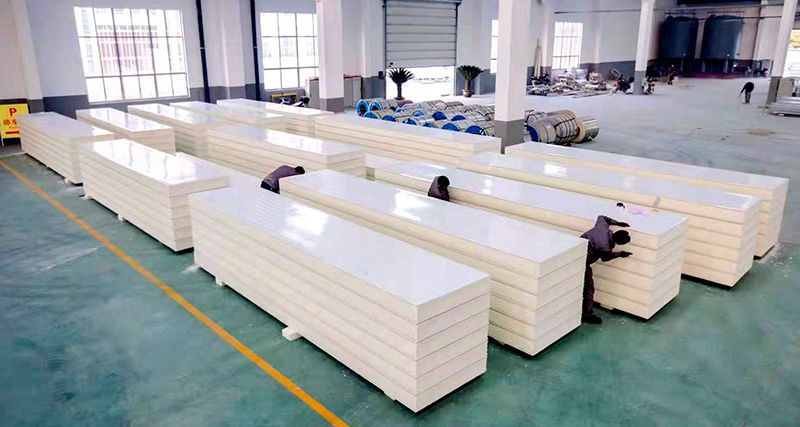

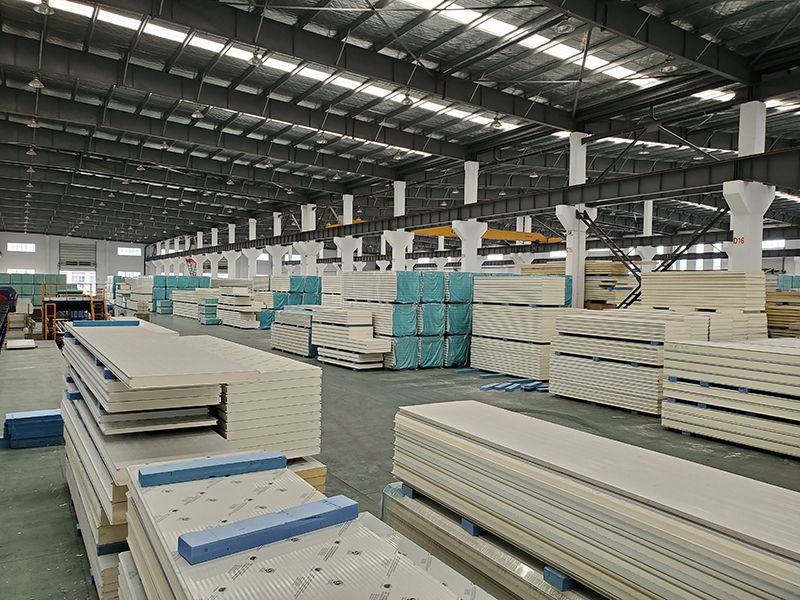

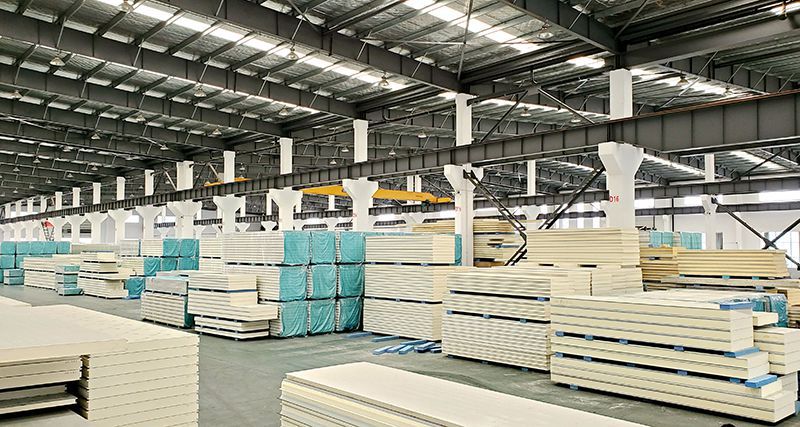

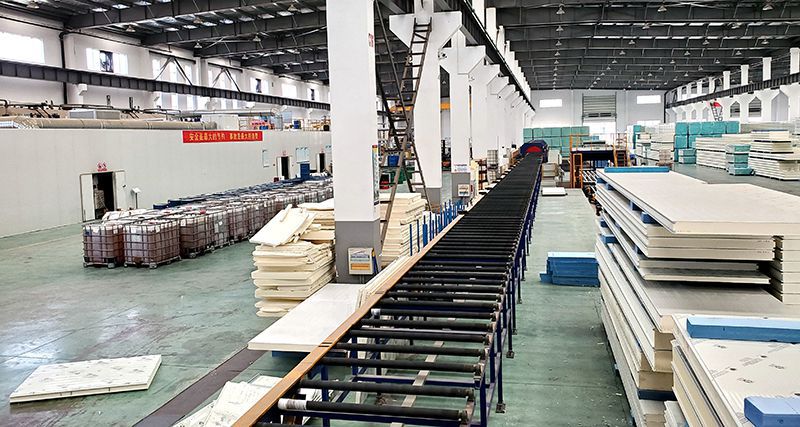

Factory
  • Onsite Pictures
  • Onsite Pictures
  • Onsite Pictures

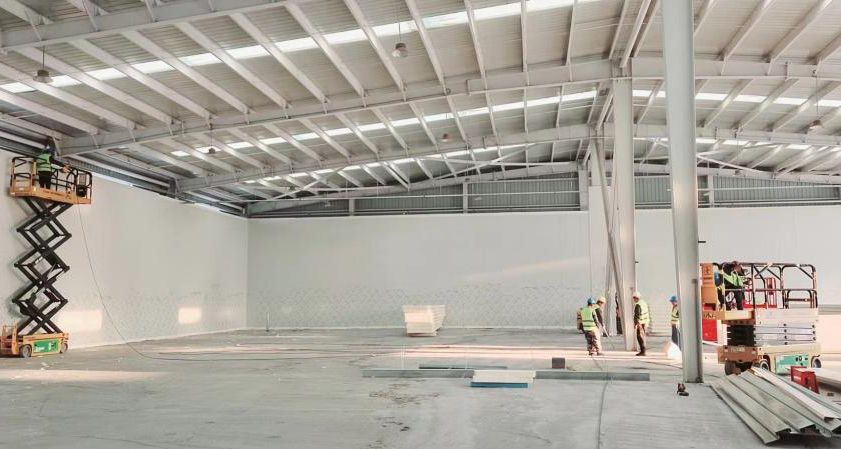

Onsite pictures
  • Onsite Pictures
  • Onsite Pictures
  • Onsite Pictures
  • Onsite Pictures
