IQF Self-Stacking Spiral Freezer

  • Home
  • Products
  • IQF Quick Freezing System
  • IQF Self-Stacking Spiral Freezer

Our IQF self-stacking spiral freezer is the perfect solution for quick and even freezing of your products. The vertical cold airflow area ensures that each product is individually frozen, resulting in a continuous large output. Plus, the ice crystal formation area ensures that your products are frozen evenly and quickly and are always delicious and juicy.

Our IQF self-stacking spiral freezer is designed to cater to all your needs. It can freeze all common products, including poultry, cut meat, prepared products, ready-to-eat products, wheaten food, baked products, aquatic food, and more. It is especially suitable for products that require high cooking temperature and high-quality standards, such as frying, baking, and steaming.

Request a Quote

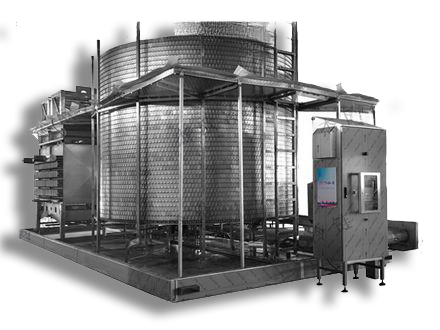

IQF Self-Stacking Spiral Freezer
Specifications
Model Size (mm) Power rating Number of fans Output (kg/h) Belt width (mm) Food tunnel Speed (m/min) Outfeed temperature Internal temperature
HSF6624 7600*4200*3600 24kW 2 1000 660 65-105mm 3.5-30 -18~-20℃ -35℃~-40℃
HSF6634 7600*4200*4400 26kW 2 1500 660 3.5-30 -18~-20℃ -35℃~-40℃
HSF6642 7600*4200*5100 26kW 2 2000 660 3.5-30 -18~-20℃ -35℃~-40℃
HSF7630 8850*4800*4200 39kW 2 2000 760 3.5-30 -18~-20℃ -35℃~-40℃
HSF7635 8850*4800*4600 39kW 2 2500 760 3.5-30 -18~-20℃ -35℃~-40℃
HSF7640 8850*4800*5000 39kW 2 3000 760 3.5-30 -18~-20℃ -35℃~-40℃
HSF9235 10200*6400*4900 66kW 3 4000 920 3.5-30 -18~-20℃ -35℃~-40℃
HSF1040 12900*8400*5000 81kW 4 6000 1060 3.5-30 -18~-20℃ -35℃~-40℃
Example chicken nuggets The infeed temperature is 65℃ and the outfeed temperature is -18℃.
Optional infeed direction, layer spacing, number of fans, total layers of belts, direction of rotation, belt width
Features
  • Unique conveyor belt system: Our closed product freezing area maximizes cooling capacity, while preventing product blow-off. The belt requires only a small power motor, which means significant energy savings. Additionally, our belt features an automatic tensioning device to prevent it from turning over.
  • Efficient vertical airflow: Our IQF spiral freezer features a centrifugal fan with large air pressure and air volume, requiring fewer fans. The fan is placed on the "dry side" of the evaporator, optimizing airflow velocity through the evaporator. Vertical cold airflow is delivered quickly to the freezing area, resulting in shorter quick-freezing time, lower drying consumption, and higher quality products.
  • Our highly efficient stainless steel tube evaporator is crafted with aluminum-magnesium alloy cooling fins, ensuring easy cleaning and defrosting
  • With an adjustable air pressure balance device, our system balances airflow and increases cooling capacity, preventing heat exchange inside and outside the shell.
  • Our automatic defrosting system (CADF) improves the heat exchange efficiency of the evaporator and extends the equipment's running time.
  • Our cleaning system ensures no bacteria residue, providing a more hygienic environment.
  • Our bottom plate design prevents cold leakage and bridging, reduces power consumption, and avoids submergence of the floor insulation layer in water.
  • Our freezer is designed with hygienic standards in mind, featuring a small footprint, and easy-to-clean structure, ensuring the efficient use of space.
Applications
  • Quick-frozen pastryQuick-frozen pastry
  • Quick-frozen sea foodQuick-frozen sea food
  • Quick-frozen poultryQuick-frozen poultry
  • Quick-frozen vegetablesQuick-frozen vegetables
