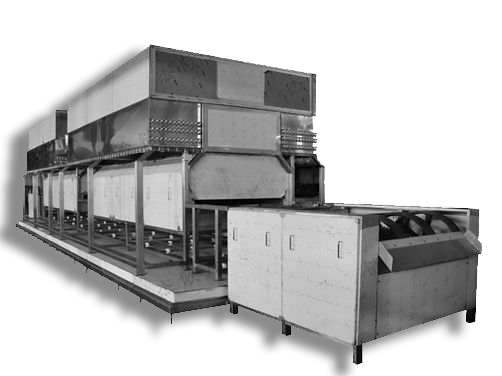

Introducing our IQF impingement freezer, designed in the latest European style.

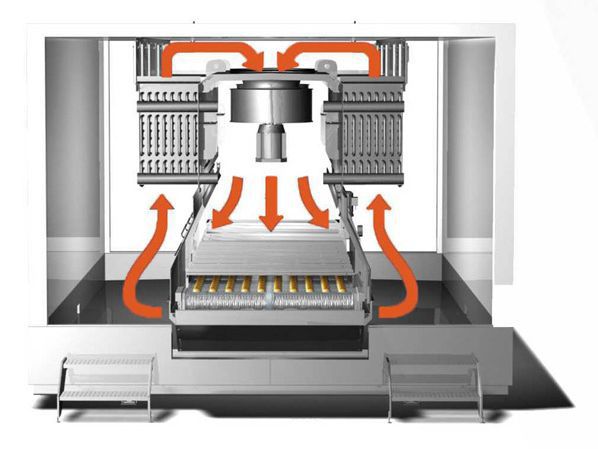

We've specially designed the low-temperature airflow and air duct circulation within the warehouse, allowing for dense high-speed airflow to hit the top and bottom of the product as it passes through the freezer on the conveyor belt. This penetrates the product's surrounding air layer, hindering heat exchange and allowing for efficient and rapid freezing.
Our impingement freezer is perfect for quick freezing of flat foods, especially thin-sliced foods such as shrimp products, fish fillets, and hamburger patties.
Request a Quote
Specifications
| Model | Size (mm) | Power rating | Number of fans | Output (Kg/h) | Belt width (mm) | Food tunnel |
| | 5500x3500x2950 | 22kW | 2 | 1000 | 1250 | 35mm |
| | 5500x4000x2950 | 32kW | 3 | 1500 | 1400 | |
| | 5500x4000x2950 | 32kW | 3 | 2000 | 1600 | |
| | 5500x4000x2950 | 32kW | 3 | 2500 | 1800 | |
| | 10800x3500x2950 | 43kW | 4 | 2000 | 1250 | |
| | 16100x3500x2950 | 63kW | 6 | 3000 | 1250 | |
| With modular design, the freezer can be expanded up to 3 modules. | ||||||
| Example | beef hamburger patties | The infeed temperature is 5℃ and the outfeed temperature is -18℃. | ||||
Features
- The vertical high-speed impact airflow greatly shortens the freezing time, ensuring that your food is quickly and efficiently frozen.
- The surface of the food quickly hardens and crusts, locking in internal moisture and reducing the drying consumption of frozen products.
- Rapid freezing without producing large ice crystals keeps your food fresh and maintains its quality even after defrosting.
- The efficient freezing reduces the device's overall size, making it more space-efficient for your production area.
- Our fan is placed on the "dry side" of the evaporator to reduce frost build-up and prolong the working time.
- The evaporator adopts stainless steel tubes and aluminum-magnesium alloy fins, ensuring high evaporation efficiency and easy cleaning.
- The modular design allows for easy installation, disassembly, and adjustment of the number of modules to adapt to different production capacities and different types of products.
- Our all-welded stainless steel bottom plate design has a simple structure that is easy to clean, ensuring that your equipment meets strict sanitary requirements.
Applications
Quick-frozen pastry
Quick-frozen sea food
Quick-frozen poultry
Quick-frozen vegetablesGet in touch
