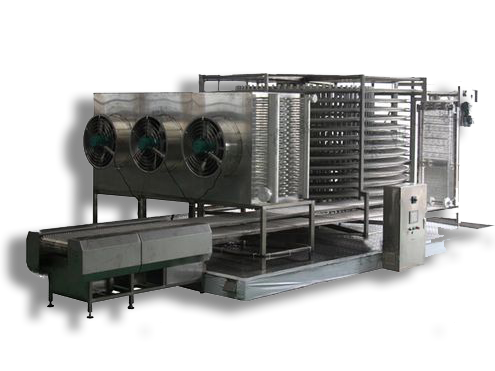

Designed and manufactured by our experienced team, this innovative spiral freezer combines the best of European technology and Howcool's advanced concepts to provide you with a reliable and efficient solution for your quick-freezing needs. Our IQF spiral freezer uses a conveyor belt that rotates in a spiral, allowing for rapid individual quick-freezing of your products. And with a wide range of applications, from hot pot ingredients, aquatic food, wheaten food, meat, poultry to dairy products and ice cream, this spiral freezer is perfect for a variety of food production lines.
Request a Quote
Specifications
| Model | Size (mm) | Power rating | Number of fans | Output (kg/h) | Belt width (mm) | Food tunnel | Layers |
| | 6800*4750*3100 | 25kW | 6 | 500 | 610 | 55- 175mm | 12 |
| | 7900*5350*3100 | 32kW | 6 | 750 | 650 | 12 | |
| | 7900*5350*4050 | 40kW | 8 | 1000 | 650 | 18 | |
| | 9500*5950*4050 | 52kW | 10 | 1500 | 710 | 18 | |
| | 11280*4750*3100 | 28kW | 6 | 750 | 610 | 12 | |
| | 12800*5350*3100 | 35kW | 6 | 1000 | 650 | 12 | |
| | 12800*5350*4050 | 45kW | 8 | 1500 | 650 | 18 | |
| | 14500*5950*4050 | 58kW | 10 | 2000 | 710 | 18 | |
| Example | chicken nuggets | The infeed temperature is 50℃ and the outfeed temperature is -18℃. | |||||
| Optional | infeed direction, layer spacing, total layers of belts, direction of rotation, belt width (520mm---1060mm) | ||||||
Features
- Flexible and Convenient to Use: Our IQF spiral freezer offers a range of infeed and outfeed directions that can be tailored to match the specific requirements of your food production line, enabling you to achieve efficient assembly line production.
- Easy Operation, Maintenance, and Cleaning: Our freezer requires no special technical knowledge or expertise to handle, and with simple training, it is easy to operate, maintain, and clean. The device has fewer wearing parts and is easy to maintain.
- Double-Sided Stainless Steel Heat Insulation Storage Body: The heat insulation storage body of our IQF spiral freezer features double-sided stainless steel polyurethane storage boards, and the storage door uses double-layer sealing strips and is equipped with a heater to prevent freezing effectively.

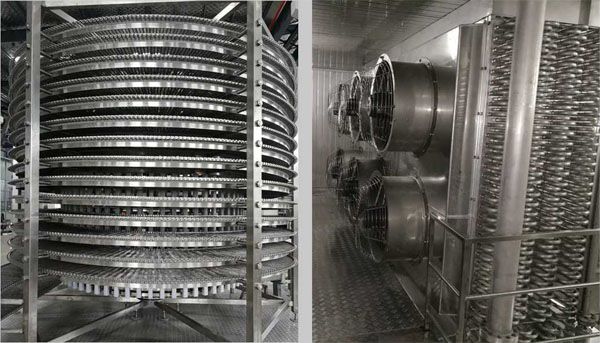

- Stainless Steel Structure: All structural parts of our IQF spiral freezer are made of stainless steel, including columns, tracks, chains, mesh belt drive bearings, and bearing housings, ensuring durability and resistance to corrosion.
- High-Performance Industrial Aluminum Alloy Evaporator: The evaporator of our freezer is made of industrial aluminum alloy, with densely arranged aluminum tubes and fins, providing excellent heat transfer performance.
- Reliable Transmission Control: The operation of the mesh belt in the freezer is controlled using variable-frequency, enabling you to adjust the speed steplessly. The device adopts advanced micro-tension synchronous transmission technology and an automatic tensioning mechanism for the mesh belt to ensure that it maintains a reasonable tension under all kinds of circumstances.
Applications
Quick-frozen pastry
Quick-frozen sea food
Quick-frozen poultry
Quick-frozen vegetablesGet in touch
