IQF Fluidized Tunnel Freezer

  • Home
  • Products
  • IQF Quick Freezing System
  • IQF Fluidized Tunnel Freezer

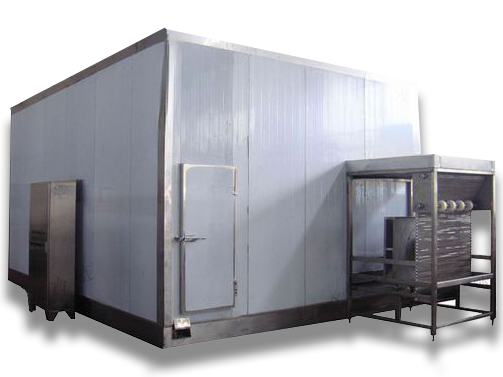

Inspired by the cutting-edge European design, our fluidized tunnel freezer utilizes the latest in fluidized quick-freezing technology, giving you a revolutionary solution for your quick-freezing needs. Our unique four-dimensional airflow technology allows your products to pass through the quick-freezing zone in a suspended state. Surrounded by vertical high-speed upward cold airflow, your products experience rapid individual freezing without sticking. It’s the perfect solution for your quick-freezing needs in the food industry. Our tunnel freezer offers two options for different product requirements: a plastic conveying mesh belt and a stainless steel mesh belt. Our freezing solution is perfect for quick freezing of various foods, including vegetables, fruits, rice, diced meat, and more.

Request a Quote
IQF Fluidized Tunnel Freezer
Specifications
Model Size (mm) Power rating Number of fans Output (kg/h) Belt width (mm)
HNL-T1-600 4135x3420x4250 38KW 2 1000 600
HNL-T2-750 5860x3810x4250 56KW 3 2000 750
HNL-T3-900 7000x4320x4250 74KW 4 3000 900
HNL-T4-900 8500x4320x4250 94KW 5 4000 900
Example kidney beans The infeed temperature is 20℃ and the outfeed temperature is -18℃.
Features
  • Stainless steel centrifugal fan: The fan generates vertical high-speed, high-pressure, and low-temperature airflow under the mesh belt for quick and even freezing of products.
  • Unique pulsator: The pulsator regulates the air pressure and airflow frequency above the product belt, gently separating products during the quick-freezing phase, ensuring that they remain intact.
  • Reciprocating vibration: Helps separate wet or sticky products and turns long and thin products for quick freezing.
  • Large windward surface of the evaporator: With a variable blade pitch design, it prolongs the frosting time and ensures the continuity of production.
  • Bypass regulator: Our freezer adjusts the air pressure above the product, ensuring optimal fluidization for efficient freezing.
  • Fully automatic control system and variable frequency: Our freezer steplessly adjusts the running speed of the mesh belt, ensuring stable and efficient production.
  • Open structure design: Our design gives you easy access to the internal equipment area, facilitating quick cleaning and maintenance.
  • CADF air defrosting system: Our evaporator can maintain high-efficiency heat exchange during long-term operation, reducing the amount of refrigerant filling and effectively utilizing the capacity of the quick-freezer.
IQF Fluidized Tunnel Freezer
Applications
  • Quick-frozen pastryQuick-frozen pastry
  • Quick-frozen sea foodQuick-frozen sea food
  • Quick-frozen poultryQuick-frozen poultry
  • Quick-frozen vegetablesQuick-frozen vegetables
