Project profile
| Project time | July 2016 |
| Freezing capacity | 800kg/h |

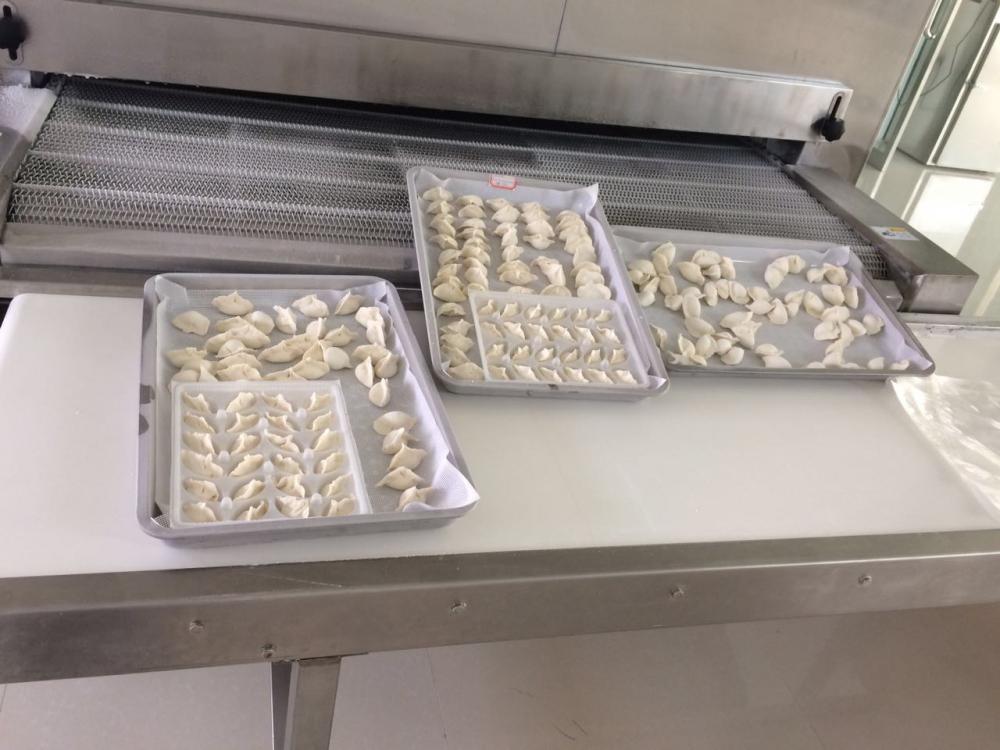

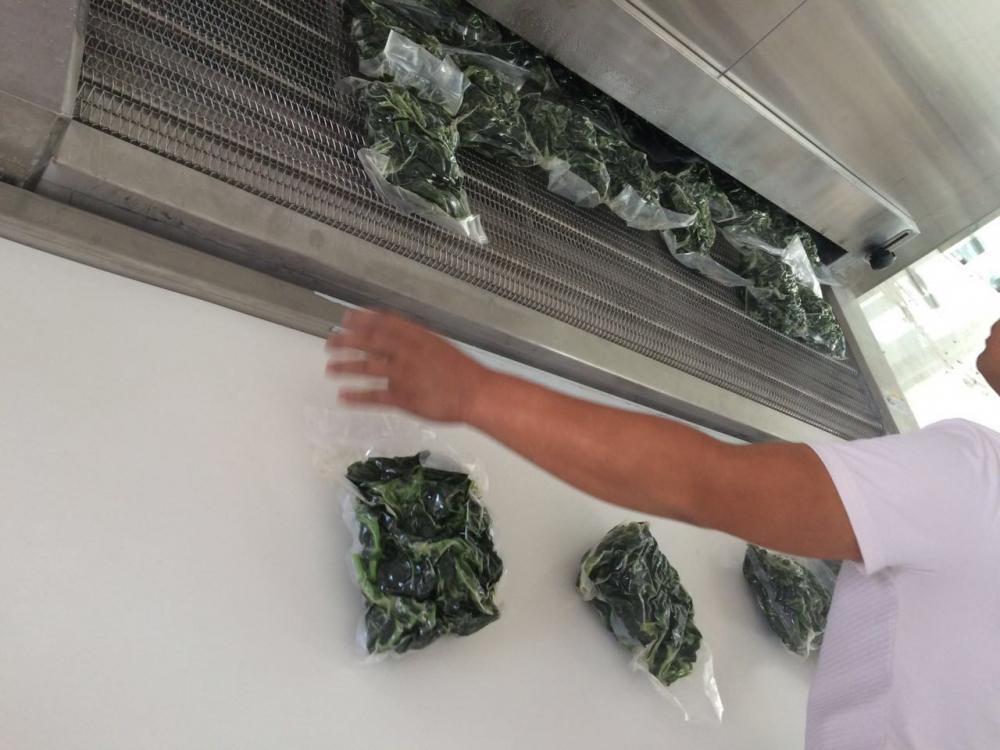

| Storage cargo | Dumpling and wild vegetables |
| Rated power | 40KW |
| Cooling consumption power | 123kw |

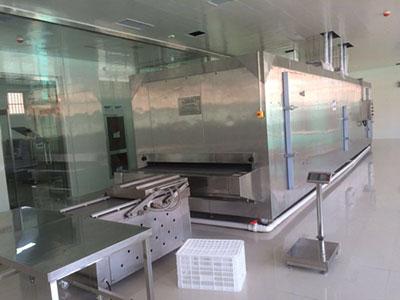

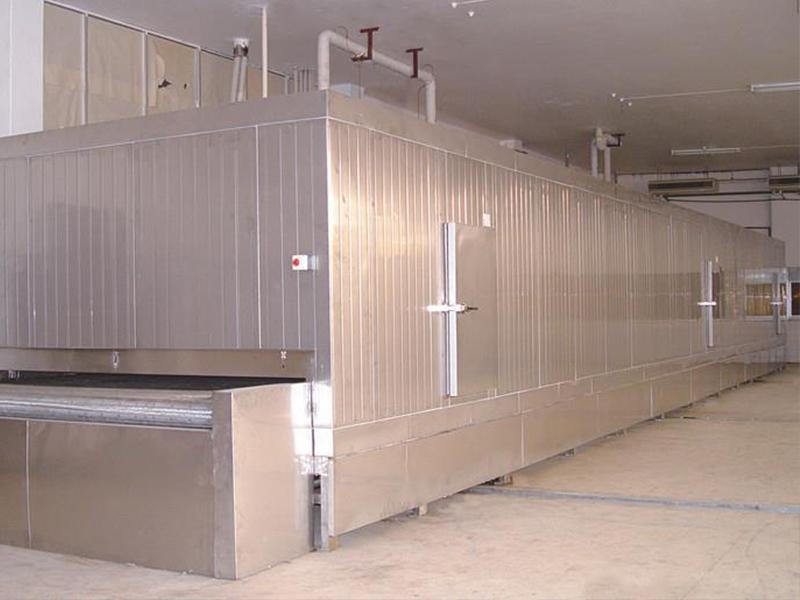

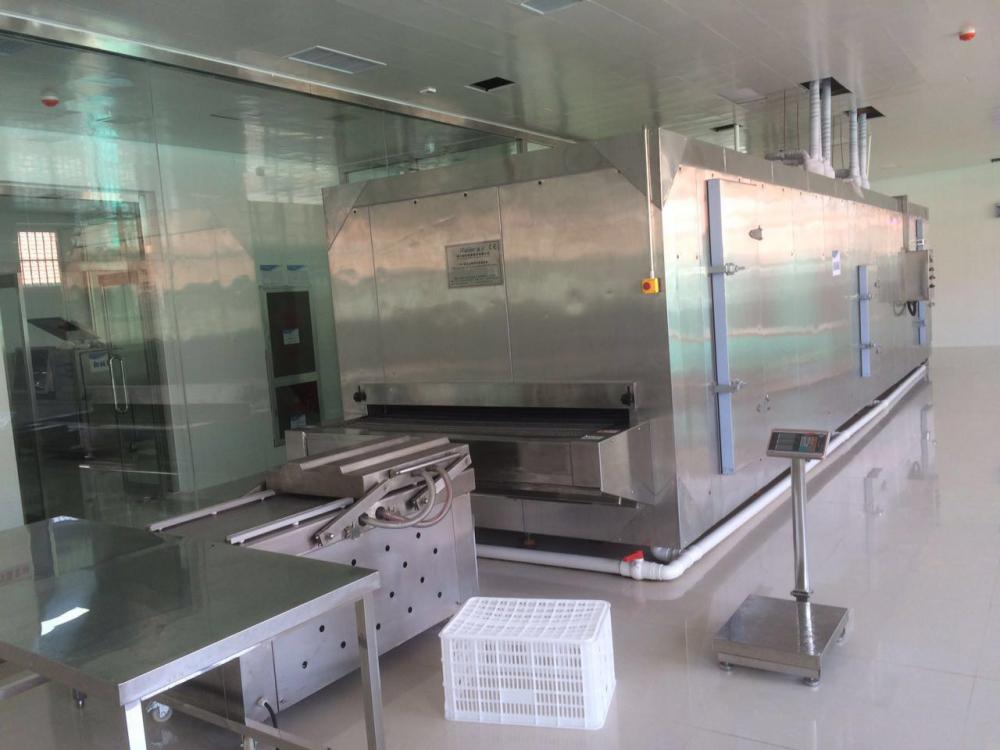

Quick freezing food tunnel freezer specification
| Dimension | 15840mm×3000mm×2340mm |
| Wire belt width | 2500mm |
| Inlet/outlet fence length | 700/700 mm |
| Cargo port height | ≤100mm |
| Inlet/outlet temperature | -35~10℃ |
| Quick freezing room temperature | -40℃ |
| Material load and unload time | 10-50 minutes |
Product detail
| Surrounding structure | Double sided stainless steel polyurethane thermal insulation board, volumetric weight≥40kg/m3, thickness:150 mm; 304 stainless steel external side plate thickness: 0.8mm |

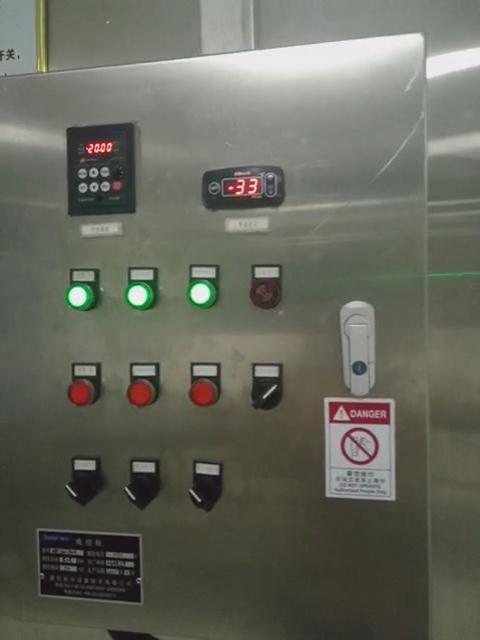

| Main electrical accessories | Schneider electric |

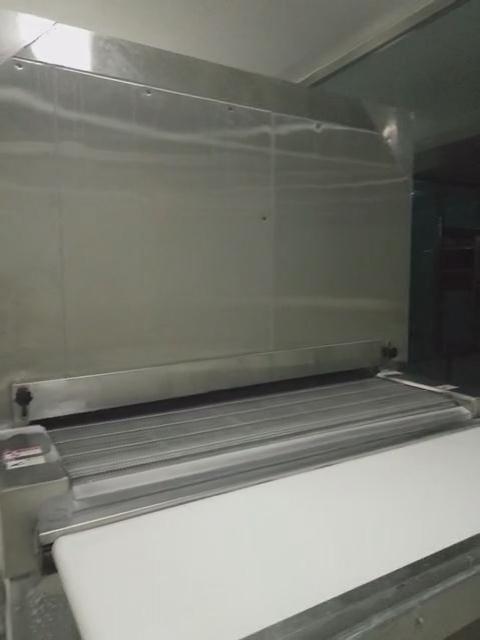

| Wire mesh belt conveyor and speed adjustment method | 304 stainless steel belt conveyor, variable frequency stepless speed adjustment |
| Slide material | UHWPE |
| Inner structure | All uses the 304 stainless steel material, argon arc welding. |
| Bottom stand | The integral structure is made of a hot dipping zinc carbon steel, the under frame is stainless steel, and the bottom legs can be adjusted. |
| Evaporator | Aluminum finned tubes with Large segment pitch, the support of control panel is stainless steel material. |
| Draught fan and electric motor | Stainless steel blow dryer, aluminum fan blade, specialized water resistant electric motor |
