Howcool has constructed many sets of cold storage warehouses for some of the branch offices of Coca Cola in Wuhan and Beijing. The cold storage warehouses can be used to store raw material and protoplasm, and the project includes three phases.
Project profile
| Cold storage warehouse capacity | 1500O | Storage capacity | 800T |

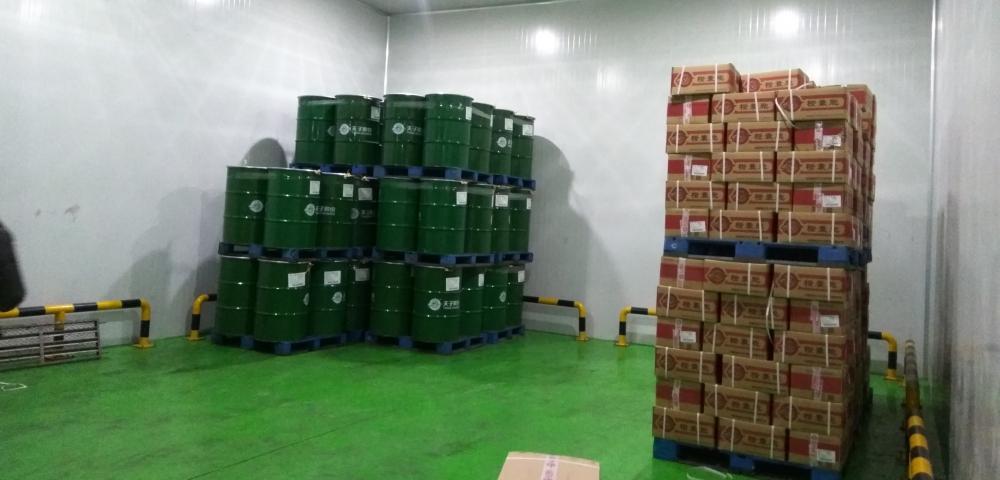

| Storage cargo | Beverage, protoplasm | Cargo handling method | Forklift |
| Height of cold storage warehouse | 3 meters | Cargo storage method | Tray |
| Construction time | October 2016 | Construction period | 35 days |
| Cold storage warehouse classification | Customer use | Building structure | Brick and concrete |
Device information
1. Part of cold storage warehouse adopts heat recovery technology, and the device uses the recovered heat to unfreeze the cargo of the low temperature cold storage warehouse.
2. The cold storage warehouse adopts a complete PLC control system, which can automatically monitor the temperature and humidity. When the device works abnormally, the alarm will be triggered, and the system will send the alarming message to the operator.
3. In order to ensure the security of client's products, Howcool made two refrigeration units for the device. If one refrigeration unit works abnormally, another one can replace it.
| Design temperature | 4-10℃:Refrigerated storage warehouse, 0-5℃: Protoplasm warehouse, -18~-25℃: Protoplasm warehouse |

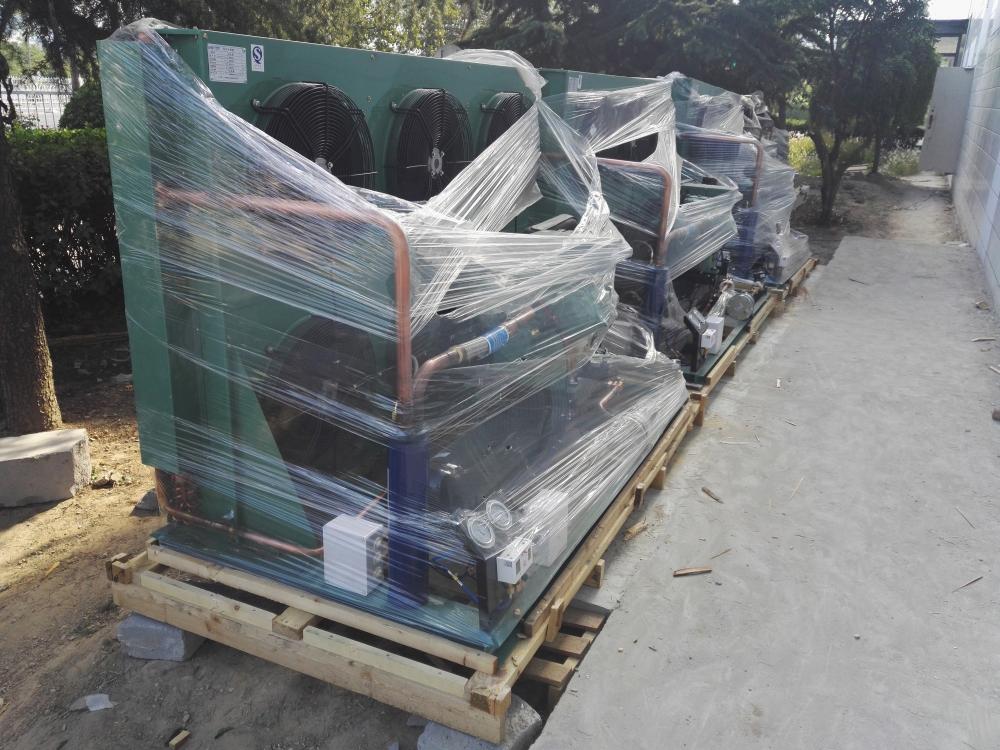

| Refrigerating unit | Bitzer brand semi-closed piston air cooling unit |
| Voltage | 380V-415V/3 phase /50-60hz |
| Condensation method | Air cooling condenser |

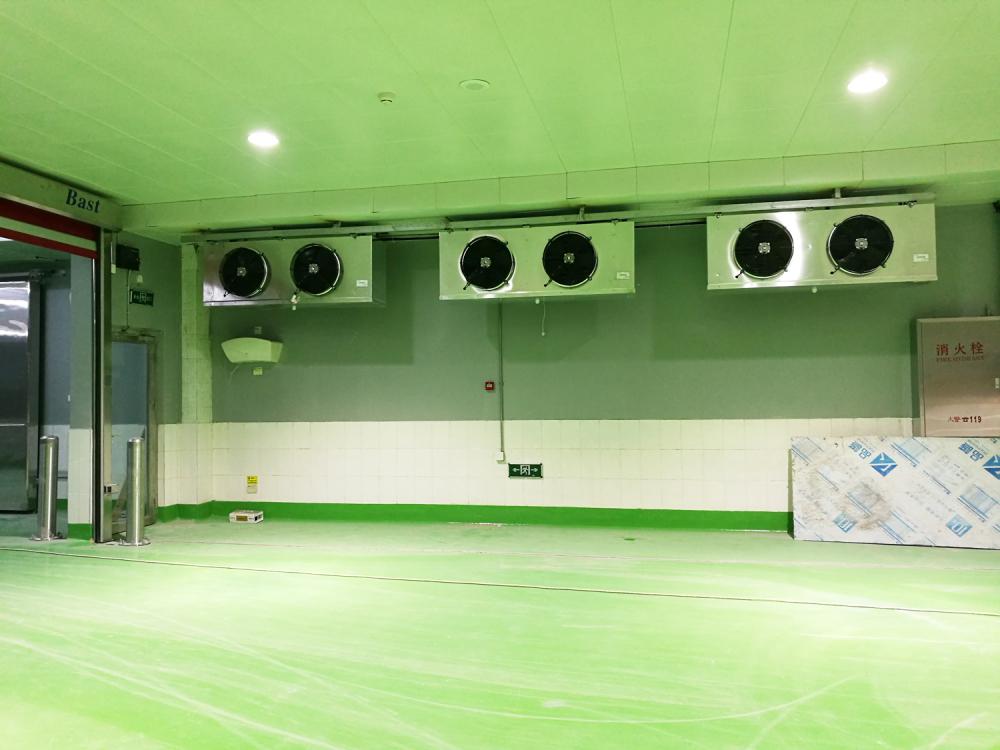

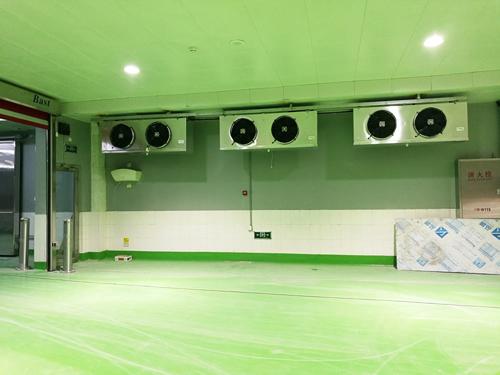

| Evaporation method | Germany Coolmaster brand air cooler |
| Defrosting method | Electric heating defrosting |
| Freezing medium | Environmentally friendly freezing medium |
| Electronic control method | PLC long-distance intelligent control, humiture monitoring,sound-light alarm when device over rated temperature |
Thermal insulation material
| Cold storage warehouse thermal insulation | PU100/150 thickness double-sided color steel polyurethane insulation board |

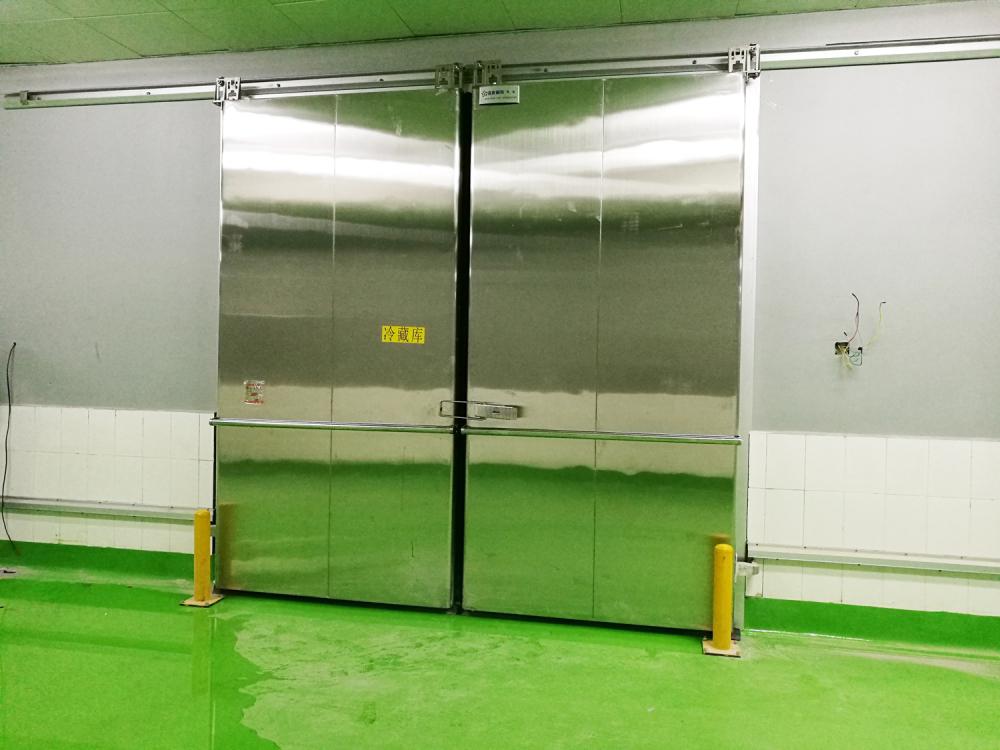

| Cold storage warehouse door | Double leaf sliding door |
